Decimator 2 Convertor 3G/HD/SD-SDI la HDMI

Descriere

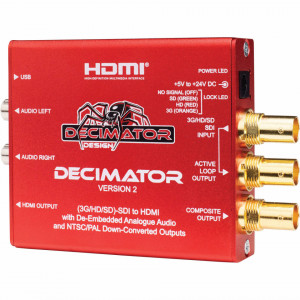

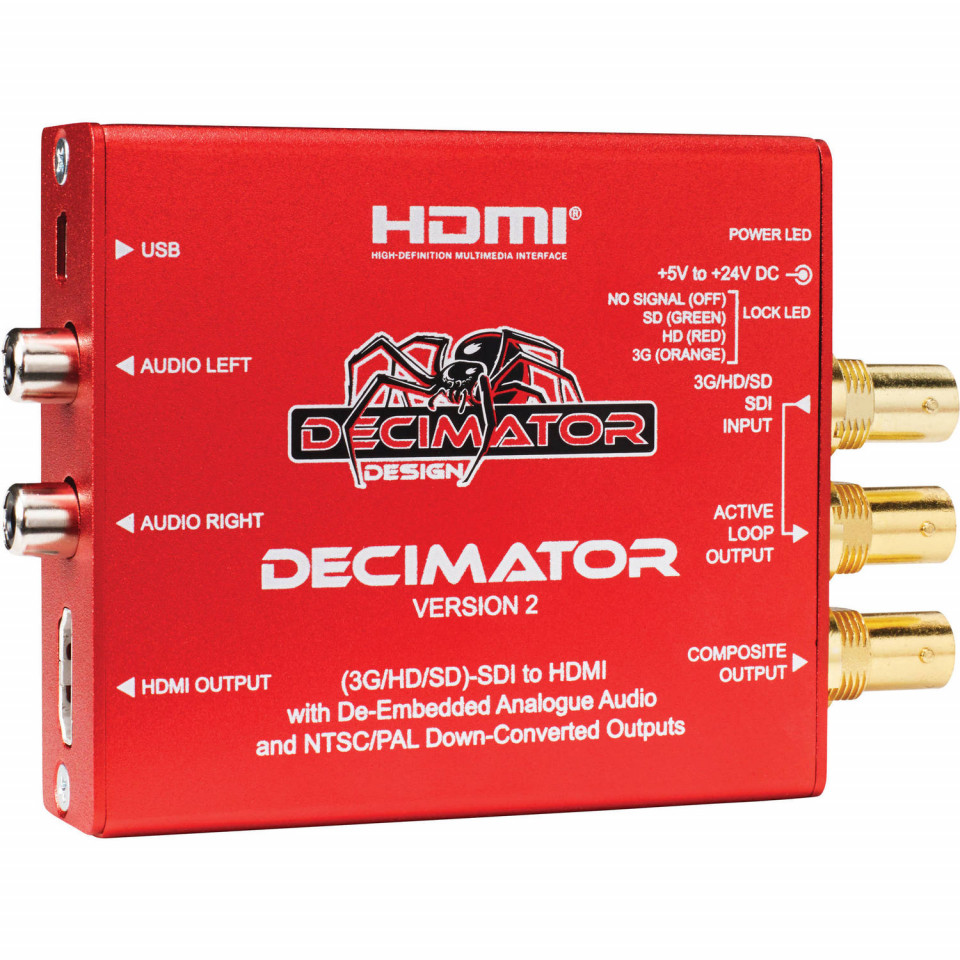

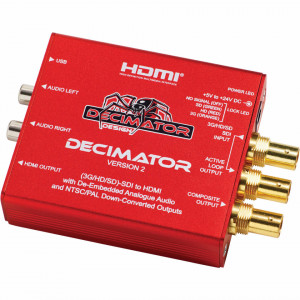

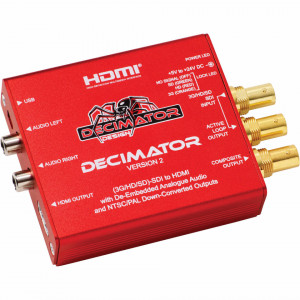

DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio OutputsDD-DEC-2

Autodetect & Signal Switching
10-Bit Data Path
SDI Loop Through, HDMI & Composite Out
Selectable Down Converted NTSC/PAL Out
Passes Closed Captions to Composite Out
Adjustable Frame Markers on HDMI Output
16-Channel Audio Meter Display on HDMI
2-Channel De-Embedded Analog Audio
External DIP Switch Configuration
Locking DC Power Socket


General
Simultaneously scales the signal on both the HDMI and composite outputs with no more than a 1 frame delay. SD-SDI signals are not scaled.
USB port for control and firmware updates.
Composite Output
Composite output is selectable to either NTSC or PAL.
The converter supports user selectable aspect ratio conversion of HD video to SD with:
16:9 to 16:9 Anamorphic
16:9 to 4:3 Letterbox
16:9 to 4:3 Center Extraction
Passes EIA-708/608 Closed Captions to the composite output.
HDMI Output

Adjustable frame markers (Graticules) with:
Separate enables for Safe Action, Safe title, and Center Cross
Adjustable position for either Safe Action of Safe Title
Adjustable colors for Safe Action, Safe Title, and Center Cross

Text Overlays:
Adjustable foreground and background colors
Adjustable 16 character text field
Input status display
Displays 16 Channels of audio meters.
Any four audio groups individually selectable.
AES/EBU, VU, Extended VU, BBC, EBU, DIN, and Nordic Scales.
Bar & Float, Bar only, or Float only
Separate Bar and Float ballistics control
Transparency and bar thickness adjustment
Adjustable reference level and red, yellow, and green range adjustment

Descriere
Fiind mai mult decat o simpla solutie de conversie de la SDI la HDMI, convertorul Decimator 2 ofera o gama de trasaturi profesionale intr-o forma compacta, de mici dimensiuni, fiind ideal pentru fluxuri de lucru in studio sau la locatie. Dispozitivul detecteaza automat semnalul de intrare si manevreaza conversia bazat pe setarile DIP switch selectate de catre utilizator. Convertorul pastreaza o cale de procesare pe 10 biti continua pentru semnal, ceea ce minimizeaza problemele cauzate de scalare.

Decimator 2 are incorporata o intrare SDI ce sustine semnale de pana la 3G-SDI si beneficiaza de o iesire SDI loop through, o iesire HDMI pentru semnalul convertit si o iesire compozit ce scaleaza automat semnalul HD livrand format fie NTSC, fie PAL. Iesirea HDMI poate afisa frame markeri selectabili sau "graticule", precum si pana la 16 canale de monitorizare audio. In plus, dispozitivul face de-embedare pentru audio din semnalul SDI si il face disponibil ca 2 canale de audio analogic. Butoanele externe ii permit utilizatorului sa selecteze felul in care unitatea face conversia la HDMI sau SD din SDI, si ce pereche stereo este disponibila pe iesirea audio analogica.

In cutie:
DECIMATOR 2 3G/HD/SD-SDI to HDMI Converter with Built-In NTSC/PAL Downscaler & Analog Audio Outputs
Universal Power Supply
HDMI Cable
USB Cable

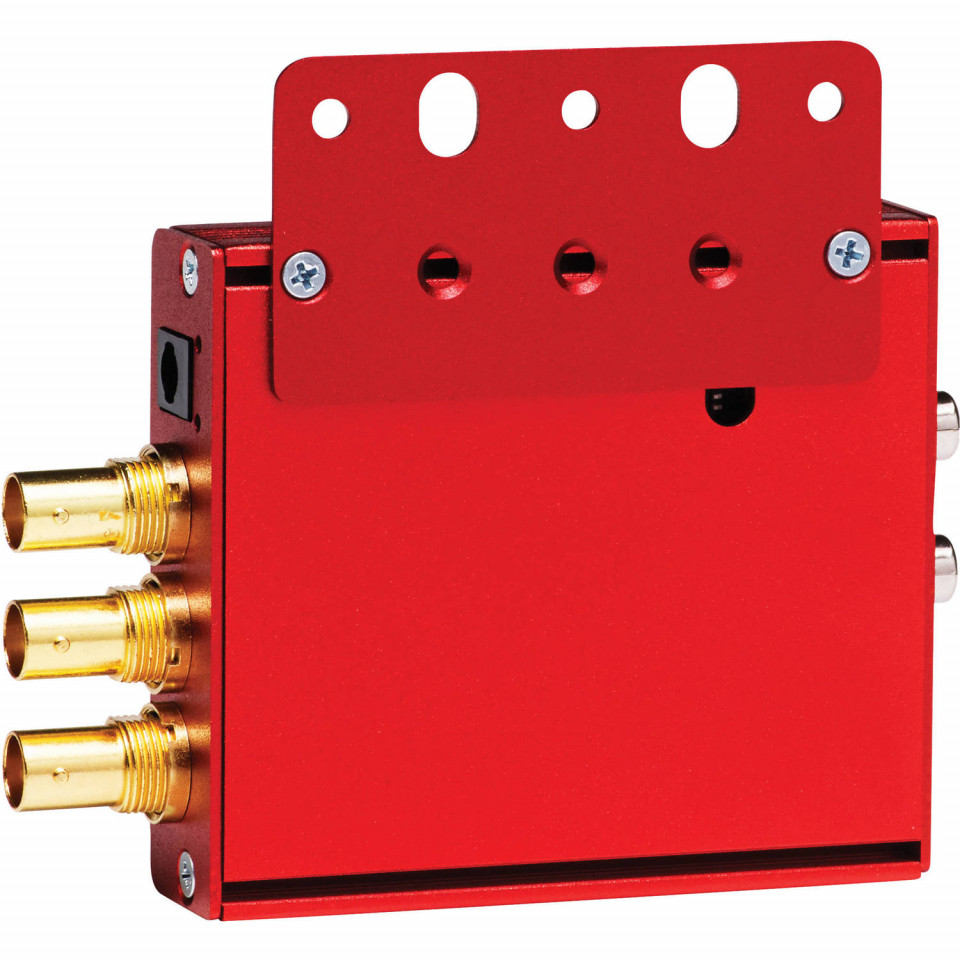

Mounting Bracket
