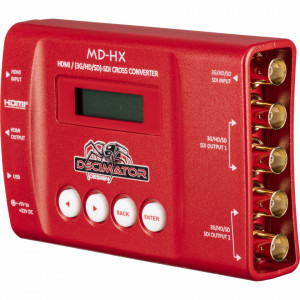

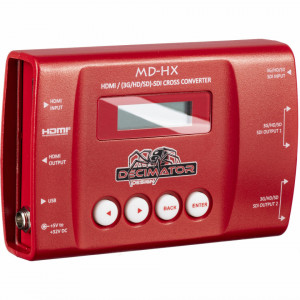

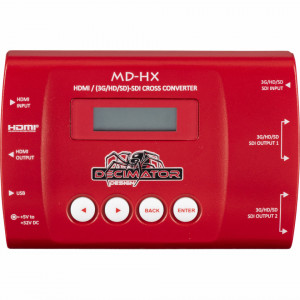

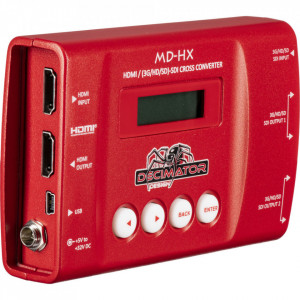

Decimator MD-HX Miniature HDMI/SDI Cross Converter

Descriere

DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion
DD-HX

HDMI & 3G-SDI Input
Converts HDMI to SDI & SDI to HDMI
Upscales/Downscales, Converts Frame Rate
HDMI, 2 x SDI Loop Through & 2 x SDI Out
14 Different Conversion Modes
LCD Info Screen with Button Controls
Threaded Locking Power Connector

14 Conversion Modes
1. SDI In to HDMI and SDI Out
2. SDI In to SDI Out and HDMI In to HDMI Out
3. SDI In to SDI Out and Scaled SDI In to HDMI Out
4. SDI In to SDI Out and Scaled HDMI In to HDMI Out
5. HDMI In to SDI Out and SDI In to HDMI Out
6. HDMI In to HDMI and SDI Out
7. HDMI In to SDI Out and Scaled SDI In to HDMI Out
8. HDMI In to SDI Out and Scaled HDMI In to HDMI Out
9. Scaled SDI In to SDI Out and SDI In to HDMI Out
10. Scaled SDI In to SDI Out and HDMI In to HDMI Out
11. Scaled SDI In to HDMI and SDI Out
12. Scaled HDMI In to SDI Out and SDI In to HDMI Out
13. Scaled HDMI In to SDI Out and HDMI In to HDMI Out
14. Scaled HDMI In to HDMI and SDI Out

Descriere
Combinand functionalitati rezervate in mod normal pentru un convertor/scaler controlat via computer, DECIMATOR MD-HX este un dispozitiv independent de mici dimensiuni ce beneficiaza de aceeasi putere de cross conversie de pe varianta mai mare DECIMATOR MD-DUCC. MD-HX are atat o intrare HDMI cat si una 3G-SDI si poate face cross conversie de la oricare dintre semnale catre celalalt. De asemenea, incorporat este si un scaler si convertor de frame, permitand convertirea semnalului de intrare la standardele dorite de utilizator pe iesire.

DECIMATOR MD-HX are iesire o HDMI si doua perechi de iesiri 3G-SDI, controlabile prin intermediul a 14 module selectabile de conversie, pentru a oferi utilizatorului flexibilitatea de care are nevoie. Convertorul nu necesita un computer, avand incorporat un ecran mic LCD pentru functii de meniu si butoane pentru control.


In cutie:
DECIMATOR MD-HX Miniature HDMI/SDI Cross Converter with Scaling & Frame Rate Conversion
Universal Power Supply
HDMI Cable
USB Cable
