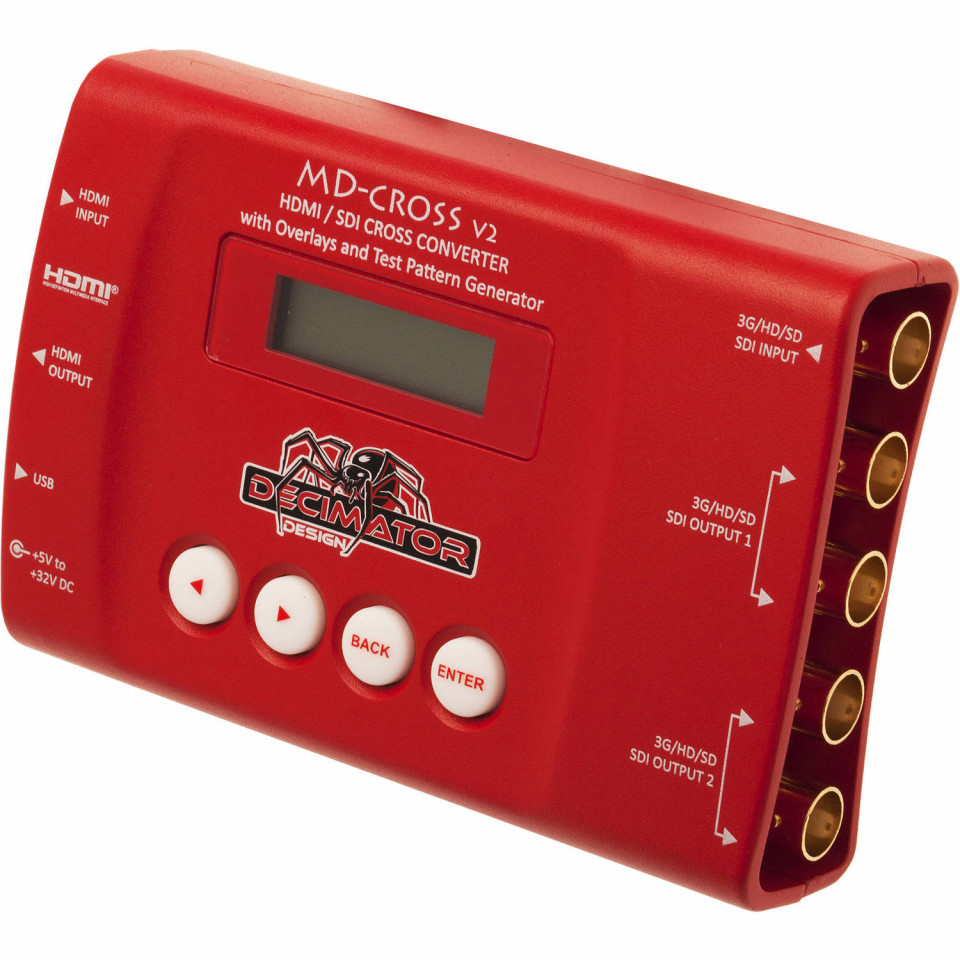

Decimator MD-Cross V2 Miniature HDMI/SDI Cross Converter

Descriere

DECIMATOR MD-Cross V2 Miniature HDMI/SDI Cross ConverterDD-CROSS

MD-CROSS v2

HDMI & 3G-SDI Input
Converts HDMI to SDI & SDI to HDMI
SD/HD/3G Test Pattern Generator
Upscales/Downscales, Converts Frame Rate

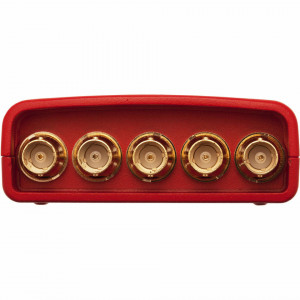

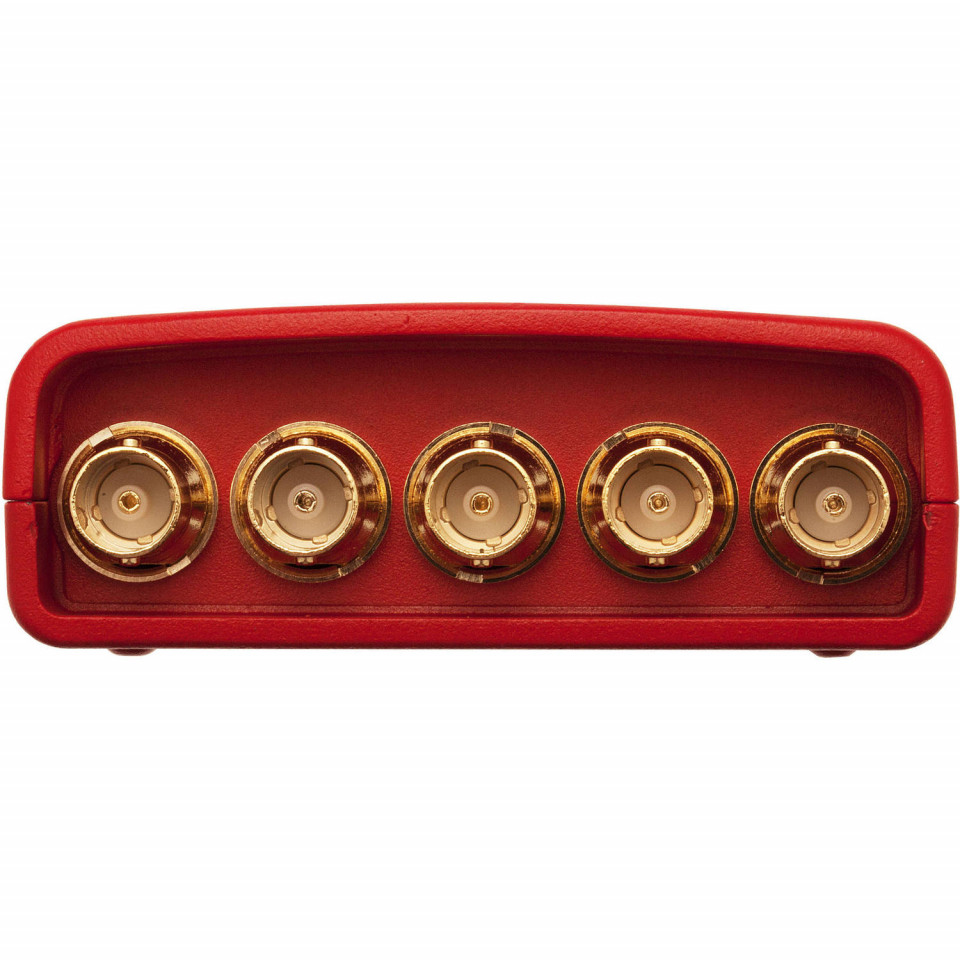

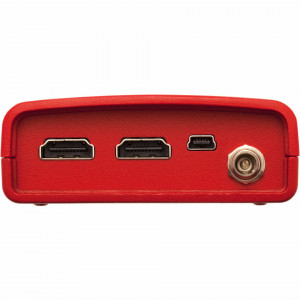

HDMI, 2 x SDI Loop Through & 2 x SDI Out
14 Different Conversion Modes

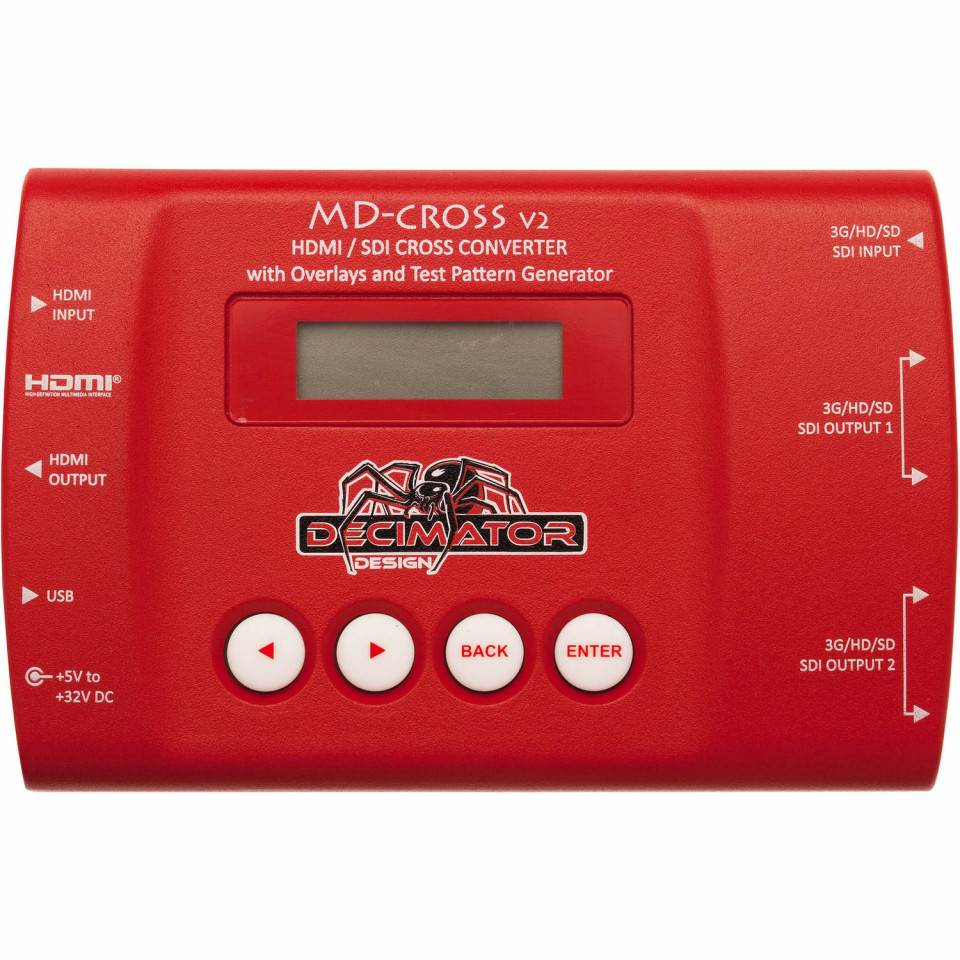

LCD Info Screen with Button Controls
Threaded Locking Power Connector

14 Conversion Modes
1. SDI In to HDMI and SDI Out
2. SDI In to SDI Out and HDMI In to HDMI Out
3. SDI In to SDI Out and Scaled SDI In to HDMI Out
4. SDI In to SDI Out and Scaled HDMI In to HDMI Out
5. HDMI In to SDI Out and SDI In to HDMI Out
6. HDMI In to HDMI and SDI Out
7. HDMI In to SDI Out and Scaled SDI In to HDMI Out
8. HDMI In to SDI Out and Scaled HDMI In to HDMI Out
9. Scaled SDI In to SDI Out and SDI In to HDMI Out
10. Scaled SDI In to SDI Out and HDMI In to HDMI Out
11. Scaled SDI In to HDMI and SDI Out
12. Scaled HDMI In to SDI Out and SDI In to HDMI Out
13. Scaled HDMI In to SDI Out and HDMI In to HDMI Out
14. Scaled HDMI In to HDMI and SDI Out

Descriere
Combinand generare de test pattern SD, HD si 3G cu functionalitati rezervate in mod normal pentru un convertor/scaler controlat via computer, DECIMATOR MD-Cross V2 este un dispozitiv independent de mici dimensiuni ce beneficiaza de aceeasi putere de cross conversie de pe varianta mai mare DECIMATOR MD-DUCC. DD-Cross are atat o intrare HDMI cat si una 3G-SDI si poate face cross conversie de la oricare dintre semnale catre celalalt. De asemenea, incorporat este si un scaler si convertor de frame, permitand convertirea semnalului de intrare la standardele dorite de utilizator pe iesire.

Generatorul de test pattern al MD-Cross suporta 26 de formate pe iesire, selectabile, cu 54 de test pattern-uri. Dispozitivul are iesire o HDMI, o iesire SDI loop through si doua perechi de iesiri 3G-SDI, controlabile prin intermediul a 14 module selectabile de conversie, pentru a oferi utilizatorului flexibilitatea de care are nevoie. Convertorul nu necesita un computer, avand incorporat un ecran mic LCD pentru functii de meniu si butoane pentru control.

In cutie:
DECIMATOR MD-Cross V2 Miniature HDMI/SDI Cross Converter
Universal Power Supply
HDMI Cable
USB Cable
