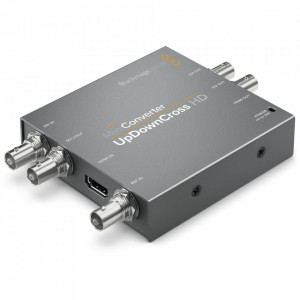

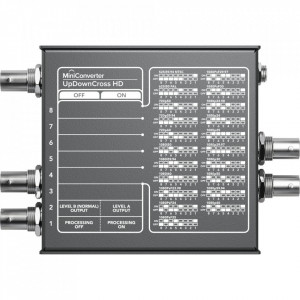

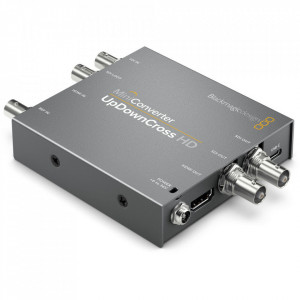

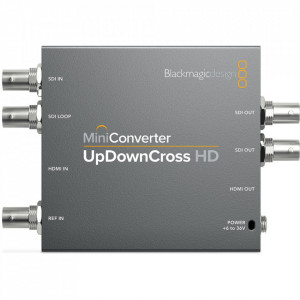

Blackmagic Design Mini Converter UpDownCross HD

Name: Blackmagic Design Mini Converter UpDownCross HD
Brand: Blackmagic Design
SKU: CONVMUDCSTD/HD
Price: 912 RON
Availability: InStock

912^,00 Lei (TVA inclus)

TVA inclus | Livrare gratuita la comenzi peste 500 Lei. Doar DPD

Disponibil in stoc

Solicita publicare produs in SICAP

Cumpara acum, plateste mai tarziu de la 21,19 Lei / Luna (Detalii aici)

Ai gasit un pret mai bun? Plaseaza comanda si castiga puncte de loialitate in valoare de 9^,12 Lei

Avantajele noastre

Credite online Finantare companii Plati online securizate Consultanta tehnica Transport gratuit Drept de retur

Comenzi telefonice - 0786454622, L - V: 10:00 - 17:30

Cere detalii

Trimite-ne un mesaj

Descriere

Blackmagic Design Mini Converter - UpDownCross HD

Conversie 3G/HD/SD-SDI Up/Down/Cross
1 x Input 3G/HD/SD-SDI
2 x Output 3G/HD/SD-SDI & 1 x Loopout
1 x Input HDMI & 1 x Output HDMI

Technical specifications

connections
SDI video inputs	1 connection for SD, HD or 3G-SDI video and 1 external reference input
HDMI video inputs	HDMI type A input
SDI video outputs	2 SDI outputs; 1 SDI output with loop through
HDMI video outputs	HDMI output type A; Output supports the EDID data of the monitor
SDI rates	270 Mbit; 1.5G; 3G
Reference inputs	Black Burst and Tri-Sync for SD and HD
Multi-rate support	Automatic detection of incoming SDI signals in HD or standard definition
Updates and configuration	USB
Reclocking	Yes
Norms
SD video standards	525i / 59.94 NTSC; 625i / 50 PAL
HD video standards	720p / 50; 720p / 59.94; 720p / 60 1080p / 23.98; 1080p / 24; 1080p / 25; 1080p / 29.97; 1080p / 30; 1080p / 50; 1080p / 59.94; 1080p / 60 1080PsF / 23.98; 1080PsF / 24 1080i / 50; 1080i / 59.94; 1080i / 60
Video standards for HDMI input	525i / 59.94; 625i / 50; 720p / 50; 720p / 59.94; 720p / 60 1080p / 23.98; 1080p / 24; 1080p / 25; 1080p / 29.97; 1080p / 30; 1080p / 50; 1080p / 59.94; 1080p / 60 1080i / 50; 1080i / 59.94; 1080i / 60
SDI compliance	SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A or Level B, ITU-R BT.601, ITU-R BT.656
SDI video rates	SDI video connections can be switched between standard definition and high definition
SDI video sampling frequency	4: 2: 2
SDI audio sampling frequency	Standard television sample rate of 48 kHz and 24 bit
SDI color accuracy	4: 2: 2
SDI color space	YUV
Automatic SDI switching	Automatic detection of SD, HD and 3G-SDI
Format conversion
Video conversion	Converts any SD and HD input to 525i / 59.94; 625i / 50; 720p / 50; 720p / 59.94; 720p / 60 1080p / 23.98; 1080p / 24; 1080p / 25; 1080p / 29.97; 1080p / 30; 1080p / 50; 1080p / 59.94; 1080p / 60 1080i / 50; 1080i / 59.94; 1080i / 60
Computer scaling	Scales the DVI resolutions 640x480, 800x600, 1024x768 to 525i / 59.94; 625i / 50; 720p / 50; 720p / 59.94; 720p / 60 1080p / 23.98; 1080p / 24; 1080p / 25; 1080p / 29.97; 1080p / 30; 1080p / 50; 1080p / 59.94; 1080p / 60 1080i / 50; 1080i / 59.94; 1080i / 60
software
Product software upgrade	Via the supplied updater application
Control of settings
steering	Mini switches
Electricity demand
Power supply	12V universal power supply with plug adapters suitable for all countries included
Power consumption	5 watts
Operating voltage range	6-36 V DC
Physical specifications
Dimensions	135 x 92 x 24 mm (LxWxH)
weight	247 kg
Surroundings
operating temperatur	0 to 40 ° C
Storage temperature	-20 to 45 ° C
Relative humidity	0-90% non-condensing
